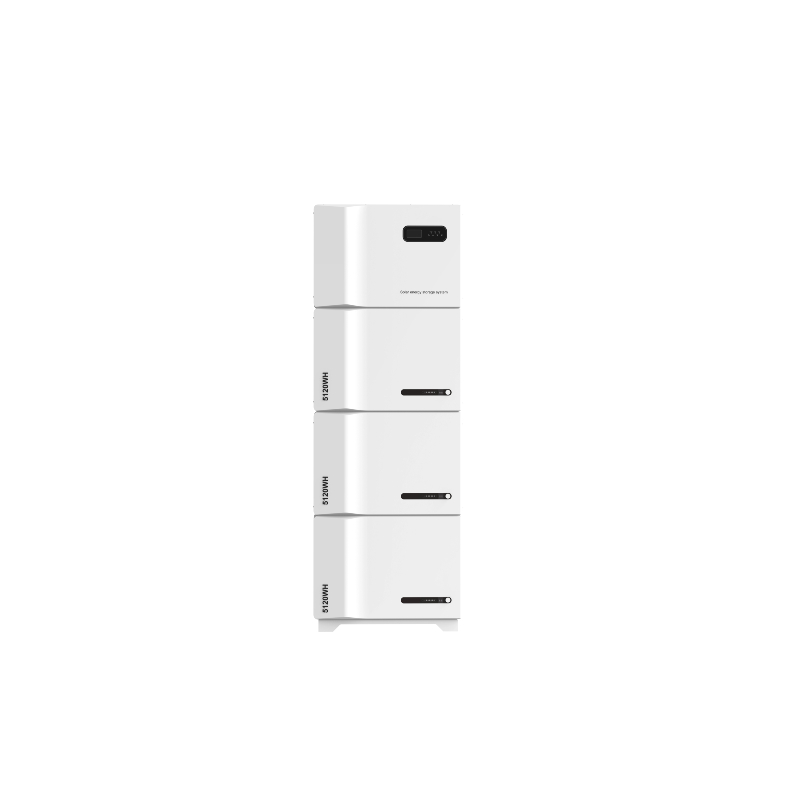

10.24kwh Home ESS(with inverter)

Brief Introduce

Home ESS refers to the local storage of electricity using household energy storage equipment for later use. The system primarily consists of energy storage batteries, inverters, and other key components.

Product Advantages

  • ✓High-Quality Battery: Utilizes brand-new A-grade LiFePO4 (Lithium Iron Phosphate) batteries, known for their safety, long lifespan, and high efficiency
  • ✓Intelligent Battery Management System (BMS): Ensures optimal charging/discharging cycles, protecting the battery from overcharge, over-discharge, and overheating
  • ✓Efficient Inverter: Converts DC energy to AC power, meeting household electricity demands seamlessly
  • ✓Support RS485 and CAN communcation ports
  • ✓LCD display for system operation data
Contact

Product Parameters

ModelEZLB51.2-100EZLB51.2-200EZLB51.2-300EZLB51.2-400
InverterRated Energy (Wh)5.5kW
AC Rated Voltage250VAC
Rated Frequency50/60Hz
Efficiency>98%
Transfer Time10ms
WaveformPure sine wave
Battery Overvoltage58.4V
Battery Undervoltage Alarm45V
Constant Voltage Charge58.4V
Float Voltage56V
Max Charging Current100A
Communication InterfaceRS232 (Inverter) / RS485 (BMS)
Dimension60*18.3*36.5cm
AC InputNominal Voltage90-280VAC
Rated Frequency50/60Hz
Frequency Range40/70Hz
Rated Current30A
Max AC Current60A
PV InputMax Voltage500V
Optimum Voltage300-400VDC
Voltage Range120V-500VDC
Max Power5500W
BatteryRated Capacity5120Wh(100Ah）10240Wh(200Ah）15360Wh(300Ah）20480Wh(400Ah）
Nominal Voltage51.2V
Discharge Voltage Range43.2V-58.4V
Standard Charging Current50A
Max Discharging Current100A
Depth of Discharge95%
Communication InterfaceRS485
Cycle Life≥6000, 25°C, 0.5C, E0L80%
Working Temperature RangeCharge: 0- 45°C, Discharge: -10°C-60°C
Storage Temperature-20°C-60°C
Dimension60*18.3*39cm
