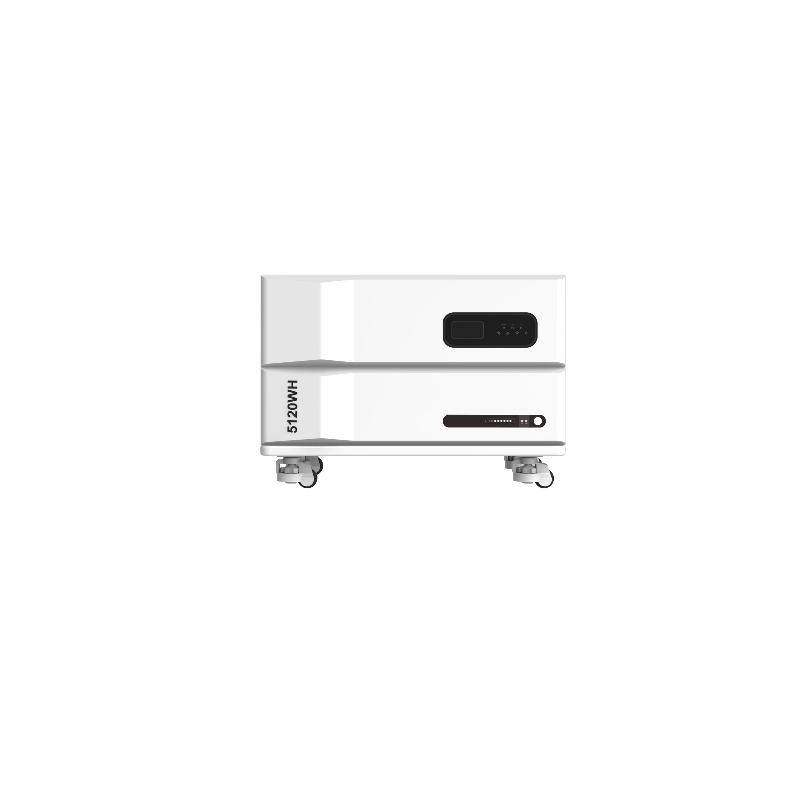

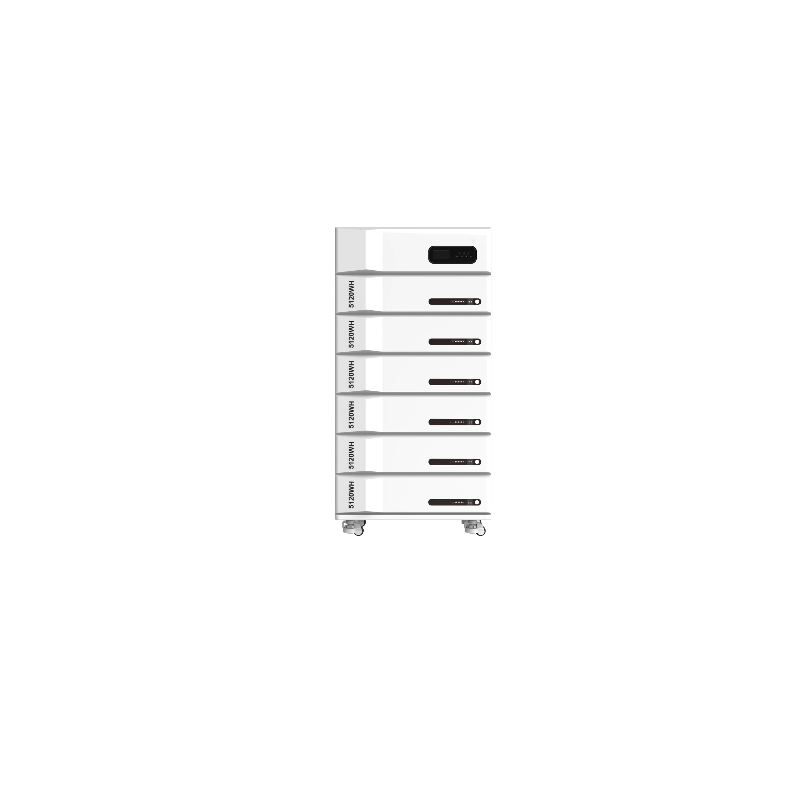

15.36kwh Home ESS (with inverter)
Brief Introduce
Home ESS refers to the local storage of electricity using household energy storage equipment for later use. The system primarily consists of energy storage batteries, inverters, and other key components.
Product Advantages
- ✓Rated Capacity：100Ah/200/Ah/300Ah/400Ah/500Ah optional
- ✓Brand new A grade LiFePo4 battery，Circle time : ≥6000times， LifeSpan up to 10 years
- ✓LCD display for system operation data
- ✓With All in one Inverter
- ✓Support RS485 and CAN communcation ports
Product Parameters
| Model | SCAP-A-51.2-100 | SCAP-A-51.2-200 | SCAP-A-51.2-300 | SCAP-A-51.2-400 | SCAP-A-51.2-500 | SCAP-A-51.2-600 | |
| Inverter | Rated Energy (Wh) | 5.5kW | |||||
| AC Rated Voltage | 250VAC | ||||||
| Rated Frequency | 50/60Hz | ||||||
| Efficiency | >98% | ||||||
| Transfer Time | 10ms | ||||||
| Waveform | Pure sine wave | ||||||
| Battery Overvoltage | 58.4V | ||||||
| Battery Undervoltage Alarm | 45V | ||||||
| Constant Voltage Charge | 58.4V | ||||||
| Float Voltage | 56V | ||||||
| Max Charging Current | 100A | ||||||
| Communication Interface | RS232 (Inverter) / RS485 (BMS) | ||||||
| Dimension | 60*40.5*18cm | ||||||
| AC Input | Nominal Voltage | 90-280VAC | |||||
| Rated Frequency | 50/60Hz | ||||||
| Frequency Range | 40/70Hz | ||||||
| Rated Current | 30A | ||||||
| Max AC Current | 60A | ||||||
| PV Input | Max Voltage | 500V | |||||
| Optimum Voltage | 300-400VDC | ||||||
| Voltage Range | 120V-500VDC | ||||||
| Max Power | 5500W | ||||||
| Battery | Rated Capacity | 5120Wh (100Ah) | 10240Wh (200Ah) | 15360Wh (300Ah) | 20480Wh (400Ah) | 25600Wh (500Ah) | 30720Wh (600Ah) |
| Nominal Voltage | 51.2V | ||||||
| Discharge Voltage Range | 43.2V-58.4V | ||||||
| Standard Charging Current | 50A | ||||||
| Max Discharging Current | 100A | ||||||
| Depth of Discharge | 95% | ||||||
| Communication Interface | RS485 | ||||||
| Cycle Life | ≥6000, 25°C, 0.5C, E0L80% | ||||||
| Working Temperature Range | Charge: 0- 45°C, Discharge: -10°C-60°C | ||||||
| Storage Temperature | -20°C-60°C | ||||||
| Dimension | 60*40.5*19.5cm | ||||||
